380 MB memory für die Nord Piano Library
128 MB memory für die Nord Sample Library
Hier die originalen Specs:
Grand, Upright, EPiano 1 (tine), Epiano 2 (reed) & Clav/Harpsichord.
Each category can contain several different models.
All pianos and samples can be replaced using the Nord Sound Manager application
String Resonance-control (Gen 1)
The Sample Library section can contain up to 50 samples from the Nord Sample Library
Stereo pianos and samples can be played back in mono
40-60 Voices polyphony for Piano Library sounds. 15 Voices for Sample Library sounds.
Three classic organ models: B3, Vox Continental, and Farfisa with full polyphony
B3 Tone Wheel Organ engine from Nord C2D Combo Organ
Two complete organ registrations for every program
Percussion with 2nd, 3rd, normal/soft, fast/slow for the B3 model
User adjustable percussion levels, percussion decays and key click level
Vibrato / Chorus Control with separate functionality for each model (the classic C1, C2, C3, V1, V2, V3 options for the B3, Vibrato for the Farfisa)
4 Tonewheel modes: select the level of "vintage" desired
MIDI Split: By connecting an extra MIDI keyboard the Nord Electro 4 can be used as a dual manual (Lower/Upper) organ with different drawbar settings for each manual
Digital LED drawbars
Effect 1 - pan, tremolo, auto-wah, pedal-wah and ring modulator
Three selectable depths for the pan and tremolo, rate controlled with the Effect 1 Rate knob
Control pedal assigned to pedal-wah and ring modulator depth
Effect 2 - phaser, flanger and chorus
Three selectable depths, rate controlled with the Effect 2 Rate knob
Comp/Amp - three amp/speaker simulations, compressor and rotary speaker
Drive/Compression amount controlled with the Drive knob
Rotary speed controls - Slow, Fast and Stopped
Close or Normal microphone placement for 122 Rotary Speaker simulation
User adjustable rotary treble and bass rotor speeds and acceleration rates
Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
Delay Effect - Rate, Amount, Tap-tempo and Stereo Ping Pong
Reverb with five algorithms - Room, Stage Soft, Stage, Hall, Hall Soft

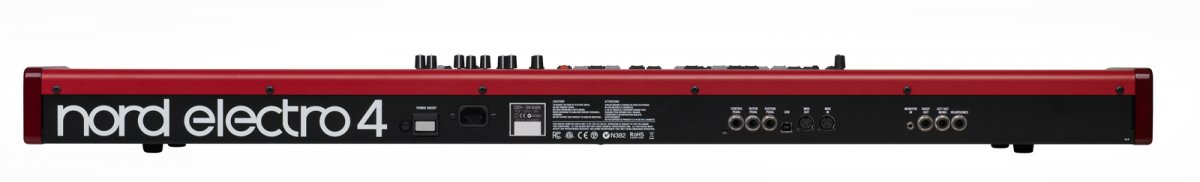

2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
1 Monitor input - 1/8", 3,5 mm stereo jack
1 Headphone output - ¼", 6,35 mm stereo jack
1 Control pedal input - ¼", 6,35 mm TRS stereo jack, like Yamaha FC7, Roland EV-7, Roland EV-5, Korg EXP2 and Korg XVP10.
1 Sustain pedal input - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
1 Rotary Speaker speed switch pedal input - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
MIDI In, MIDI Out - 5 pin DIN connectors
USB - type B connector - for transferring sounds and USB MIDI
IEC C14 power connector
